I’ve always felt like it was impossible to find a guide on how to create Roblox guis which scale for all devices. I often heard things like Scale, Offset, and Aspect Ratio Constraints being discussed around this topic, but could never figure out how to correctly use them.

I recently discovered a method for scaling guis, which is extremely easy to use. It’s composed of a single pre-written script and it requires us to insert a UI Scale instance into our guis. There are a few more things to consider, but I guarantee this is extremely easy.

Scaling Script

This script modifies the UI Scale instance we include in our guis to resize it on different devices. We’ll talk more specifically about how the script works further in the Creating the UI Scale section.

1. Create a Local Script inside of the StarterPlayer/StarterPlayerScripts
2. Paste the following code inside of the script:

local collection_service = game:GetService("CollectionService")
local GUI_service = game:GetService("GuiService")
local workspace_service = game:GetService("Workspace")

local scale_component_to_base_resolution: {[UIScale]: Vector2} = {}
-- Required property `AbsoluteContentSize` is not in `UILayout` superclass.
type scrolling_frame_layout_component = UIGridStyleLayout | UIListLayout
local layout_component_to_rescaling_connection: {[scrolling_frame_layout_component]: RBXScriptConnection?} = {}

local camera = workspace_service:FindFirstChild("Camera")
local actual_viewport_size: Vector2? = nil

local has_initialized = false

local function rescale(scale_component: UIScale, base_resolution: Vector2)
	assert(actual_viewport_size ~= nil)
	scale_component.Scale = 1 / math.max(base_resolution.X / actual_viewport_size.X, base_resolution.Y / actual_viewport_size.Y)
end

local function rescale_all()
	local top_inset, bottom_inset = GUI_service:GetGuiInset()
	actual_viewport_size = camera.ViewportSize - top_inset - bottom_inset

	for scale_component, base_resolution in scale_component_to_base_resolution do
		rescale(scale_component, base_resolution)
	end
end

local function register_scale(component: UIScale)
	local base_resolution = component:GetAttribute("base_resolution")
	assert(typeof(base_resolution) == "Vector2")
	scale_component_to_base_resolution[component] = base_resolution
end

local function register_scrolling_frame_layout_component(layout_component: scrolling_frame_layout_component)
	local scale_component_referral = layout_component:FindFirstChild("scale_component_referral")
	assert(scale_component_referral:IsA("ObjectValue"))
	assert(scale_component_referral.Value ~= nil)
	assert(scale_component_referral.Value:IsA("UIScale"))
	local scale_component: UIScale = scale_component_referral.Value
	local scrolling_frame = layout_component.Parent
	assert(scrolling_frame ~= nil)
	assert(scrolling_frame:IsA("ScrollingFrame"))
	-- https://devforum.roblox.com/t/automaticcanvassize-working-with-uilistlayout-and-uiscale-causes-wrong-automatic-size/1334861.
	layout_component_to_rescaling_connection[layout_component] = layout_component:GetPropertyChangedSignal(
		"AbsoluteContentSize"
	):Connect(function()
		scrolling_frame.CanvasSize = UDim2.fromOffset(
			layout_component.AbsoluteContentSize.X / scale_component.Scale,
			layout_component.AbsoluteContentSize.Y / scale_component.Scale
		)
	end)
	scrolling_frame.CanvasSize = UDim2.fromOffset(
		layout_component.AbsoluteContentSize.X / scale_component.Scale,
		layout_component.AbsoluteContentSize.Y / scale_component.Scale
	)
	print('set')
end

local function initialize()
	assert(has_initialized == false)
	has_initialized = true

	collection_service:GetInstanceAddedSignal("scale_component"):Connect(function(object: Instance)
		assert(object:IsA("UIScale"))

		register_scale(object)
		rescale(object, scale_component_to_base_resolution[object])
	end)
	collection_service:GetInstanceRemovedSignal("scale_component"):Connect(function(object: Instance)
		assert(object:IsA("UIScale"))
		scale_component_to_base_resolution[object] = nil
	end)

	for _, object in collection_service:GetTagged("scale_component") do
		assert(object:IsA("UIScale"))

		register_scale(object)
	end

	collection_service:GetInstanceAddedSignal("scrolling_frame_layout_component"):Connect(function(object: Instance)
		assert(object:IsA("UIGridStyleLayout") or object:IsA("UIListLayout"))
		register_scrolling_frame_layout_component(object)
	end)
	for _, object in collection_service:GetTagged("scrolling_frame_layout_component") do
		assert(object:IsA("UIGridStyleLayout") or object:IsA("UIListLayout"))
		register_scrolling_frame_layout_component(object)
	end
	collection_service:GetInstanceRemovedSignal("scrolling_frame_layout_component"):Connect(function(object: Instance)
		assert(object:IsA("UIGridStyleLayout") or object:IsA("UIListLayout"))
		local rescaling_connection = layout_component_to_rescaling_connection[object]
		assert(rescaling_connection ~= nil)
		rescaling_connection:Disconnect()
		layout_component_to_rescaling_connection[object] = nil
	end)

	camera:GetPropertyChangedSignal("ViewportSize"):Connect(rescale_all)
	rescale_all()
end

initialize()

Changing Screen Size

Roblox gives us an easy way to visualize what our GUI looks like on different screen sizes and devices. We want to use this tool to create all of our guis at the same screen size.

1. Click the TEST tab between the AVATAR & VIEW tab at the top of Studio
2. Click the Device button in the Emulation pane
3. Set the device to HD 1080 1920 x 1080 or your preferred device
4. Set the mode to Fit to Window to enlarge the display

Creating the Gui

Creating the Container Frame

Let’s create the main frame which will contain all of the other components of our gui.

There are two important things we should keep in mind when creating this frame:

• The size of this container element should be set using Offset.
• The position should be set using Scale, but you can also use Offset with Scale as well.

This only applies to the container element, which holds all of the other GUI components. You can use any combination of scale and offset for both the position and size of elements stored inside the container element.

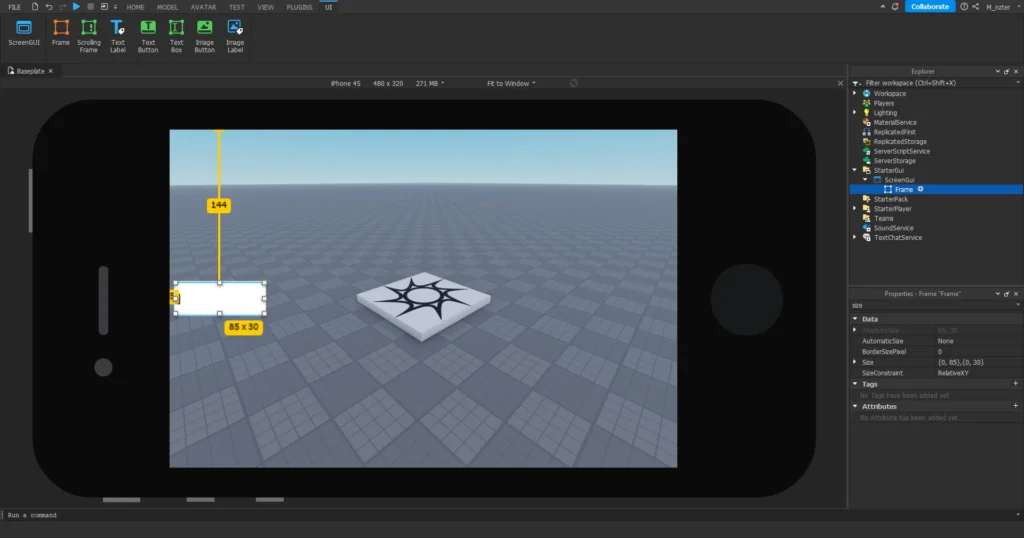

Using Scale & Offset for Positioning

Scale can be used for the position if we want to anchor the frame from an edge or the center of the screen.

The following is an example of how you could create a currency display GUI by using both offset and scale.

1. Center the Frame vertically by setting the scaled Y of its Anchor Point & Position to 0.5
2. Give it some space from touching the left side of the screen by setting its offset X of the Position to 5
3. Turn the frame into a rectangle by setting its Size to 0, 85, 0, 30

Here we use offset for the X of the Position, to move the frame slightly away from touching the edge of the screen.

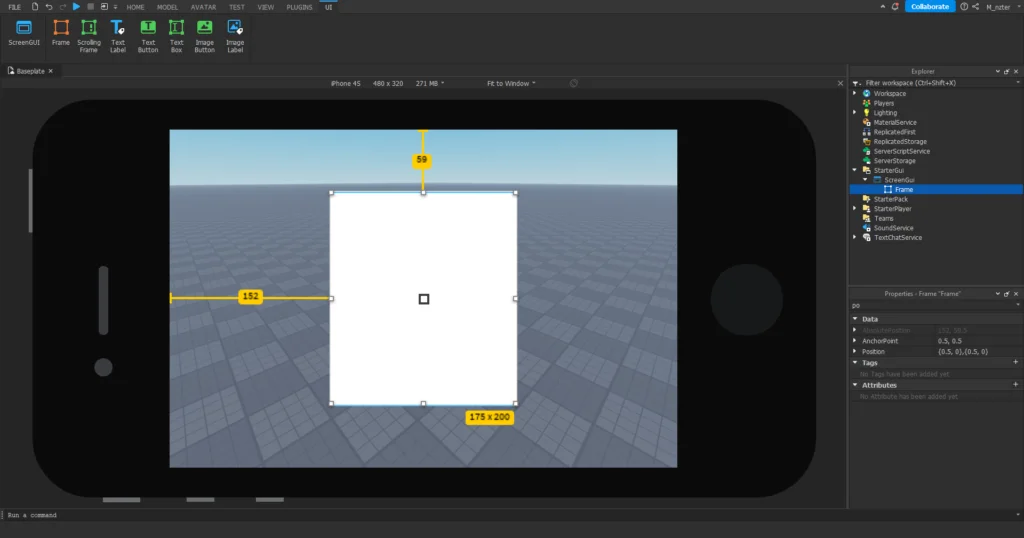

Using Scale for Positioning

We’ll now convert that currency label to look like the settings frame we’re going for.

1. Let’s center the frame by setting its Anchor Point & scaled Position to 0.5 on both the X & Y axis. (The offset of both axes should be 0)
2. Let’s enlarge the frame by setting its size to 0, 500, 0, 550

Here we use only scale to center the frame.

Creating the Inner Elements

When it comes to the inner elements we’re able to use any combination of scale and offset for the position and size. Let’s create a basic title for a Settings gui.

I’m only going to include property changes that are relevant to the lesson.

1. Create a Text Label within the Frame
2. Set the Size in offset to 300 for the X and 50 for the Y
   • Or you could set the Size in scale to 0.6 for the X & 0.091 for the Y
3. Center it horizontally by setting the Anchor Point & Position’s X scale to 0.5
   • Or you could use Offset for the X Position by setting it to 250
4. Move it slightly down from the top by setting the Y offset of the Position to 5
   • Or you could use Scale for the Y Position by setting it to 0.009

Sizing the Text

Today is the day you stop using the Text Scaled property when working with Text instances! Rather than using Text Scaled, we will modify the Text Size property to resize our Text.

1. Increase the Text Size to 62

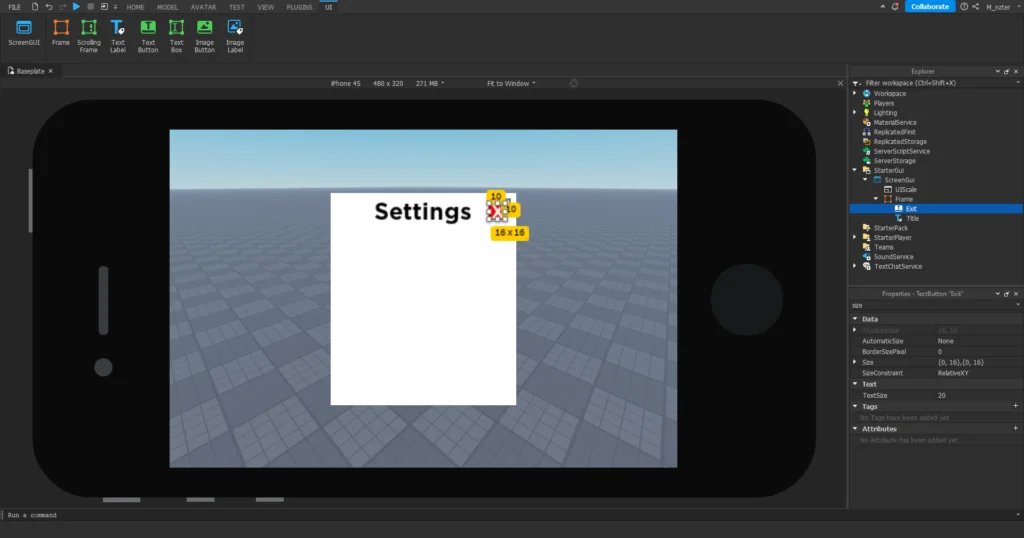

Creating the Exit Text Button using Offset

We’ll create two exit buttons to display how we can use scale or offset for sizing the inner elements.

1. Create a Text Button
2. Set the Size in offset to 135 for the X and 25 for the Y
3. Center it horizontally by setting the Anchor Point & Position’s X scale to 0.5
4. Move it slightly down from the top by setting its Position’s Y offset to 10
5. Increase the text size by setting its Text Size property to 24

Creating the Exit Text Button using Scale

1. Duplicate the previous Text Button we created
2. Set the Size in scale to 0.091 for the X and 0.08 for the Y
3. Move it slightly below the previous Text Button by setting its Position’s Y offset to 30

Creating the UI Scale

Since we have finished creating the Gui, we need to do one final step to automatically scale the Gui with different device sizes.

1. Create a UI Scale inside of the Screen Gui
2. Add a Collection Service tag to it called scale_component
3. Add a Vector 2 attribute to it called base_resolution with the value of 1920, 1080 which is the resolution we created the GUI at

The script we created earlier uses the Collection Service to find UI Scale objects with the scale_component tag. It uses the value of base_resolution as well to scale the GUI.

Testing

Let’s see what this GUI will look like on a smaller device.

1. Set the device to iPhone 4S 480 x 320 or your preferred device

Begin testing the game and you should instantly see the GUI scaled correctly to the smaller device.

Sources

• Open-Source Roblox Game can be downloaded to see examples of scaled guis using this method.
• Discord thread inside the Roblox OSS Community: This is where I originally found this method. I’d highly encourage you to read more in there!
• Dev Forum thread with another script solution and explanation.
• Github gist of the original script.
